Drafting

Production drawings and design capacity for steel and machine building.

I deliver 3D models, production and assembly drawings, sheet-metal flat patterns and bills of materials, in Autodesk Inventor and AutoCAD.

Send a drawing Call +32 479 54 46 59

01—Where I step in

A complete design

You need a machine, structure or installation and nobody in-house to draw it. I take the design from concept to production drawing, with the bills of materials and flat patterns your workshop needs.

Extra capacity for your team

Your drafters are fully booked. I take over part of the work, on site with you or remotely, in your templates and to your drawing standard.

02—Projects

Industrial process installation in a hall, with a hopper tower on a grated platform, a stair, a bulk bag on a pallet, and IBC tanks.

Process installation with bulk transfer station

I did the complete mechanical design: layout, steel structure, platforms, stairs, guard rails and access for maintenance.

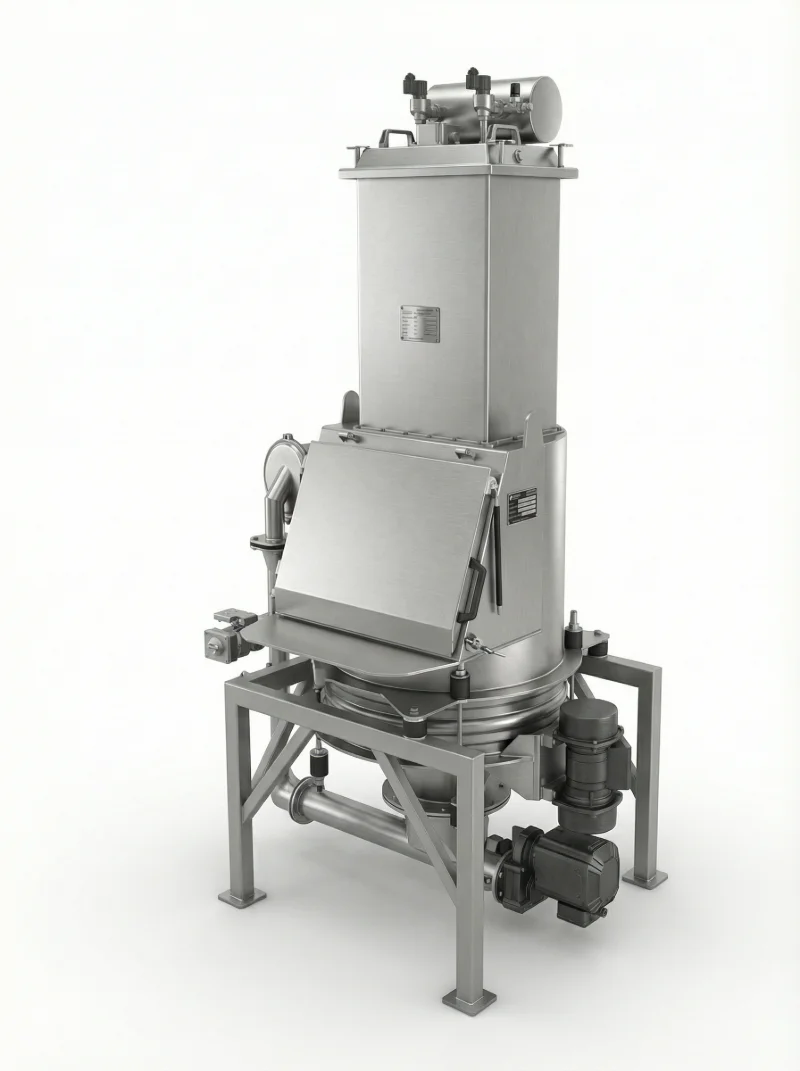

Stainless process machine on a steel frame, with a tall housing, a sloped hatch, pipework and two motors.

Stainless process machine

I designed the machine in 3D, with its frame, hopper, hatch, pipework and drives.

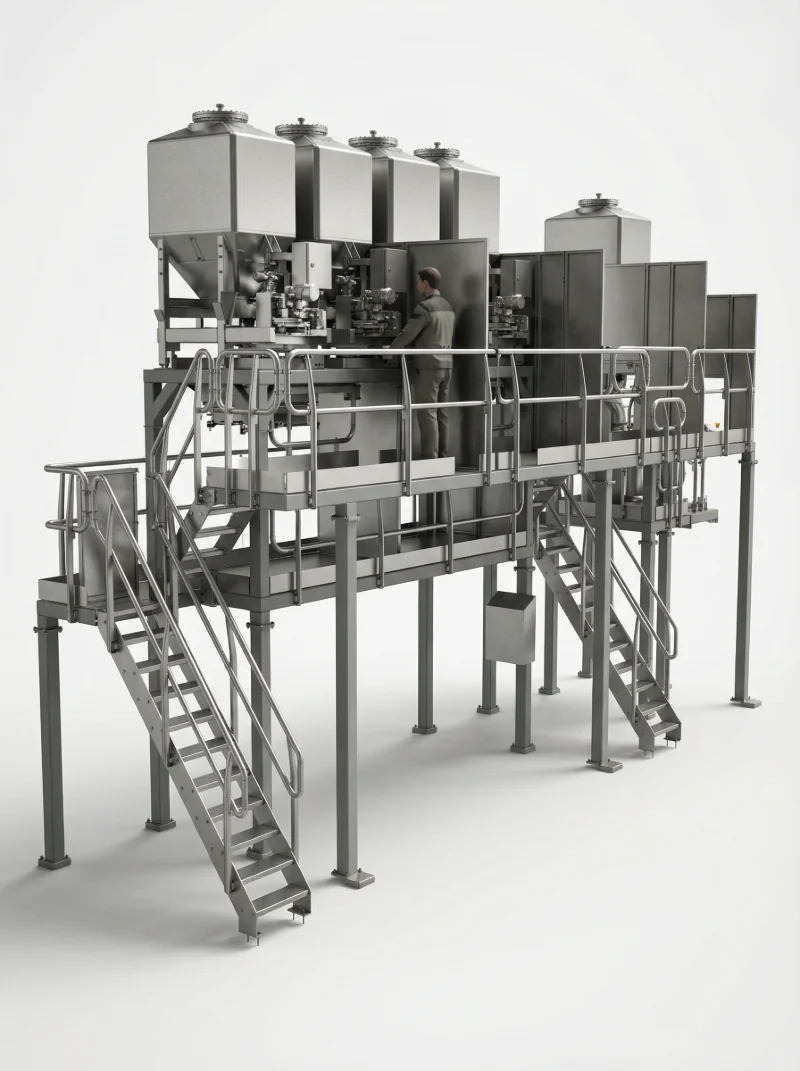

Steel process installation with hoppers, a platform, guard rails and two stairs. A figure stands on the platform.

Process platform

I drew the platforms, stairs and guard rails around a process installation with hoppers.

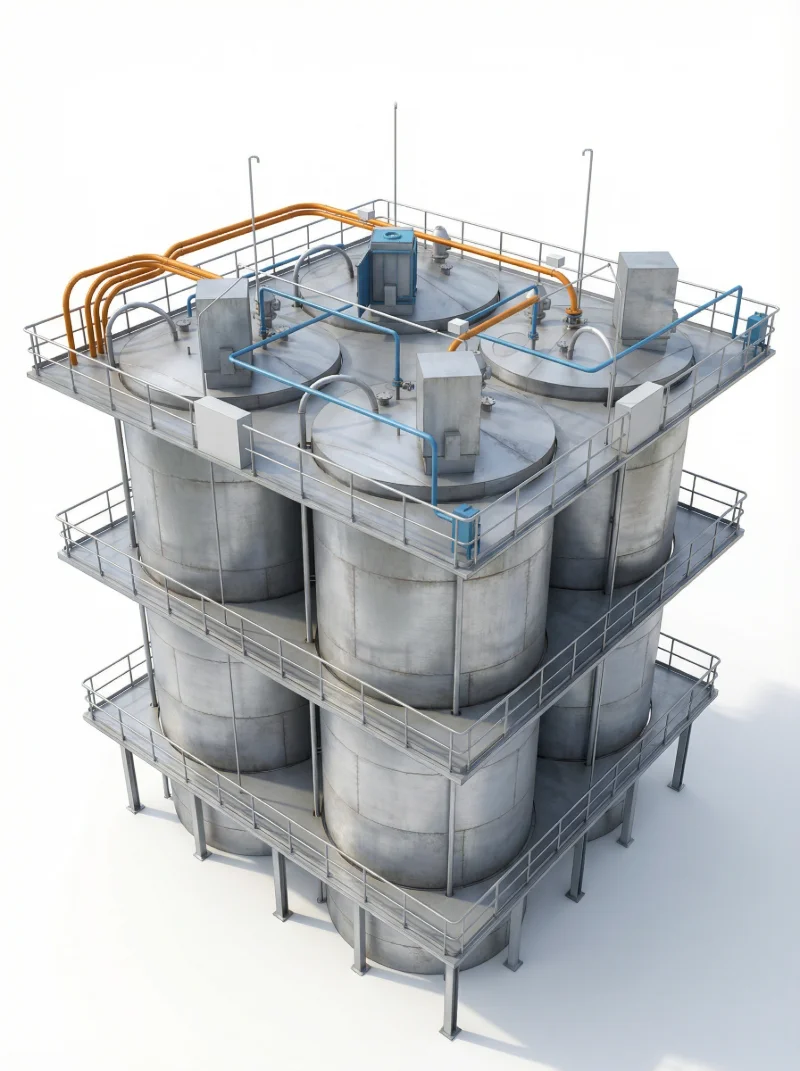

Group of cylindrical tanks in a steel rack with three levels of guard rails and pipework on the roof.

Tank farm

I designed the steel structure with three levels of platforms around a group of tanks.

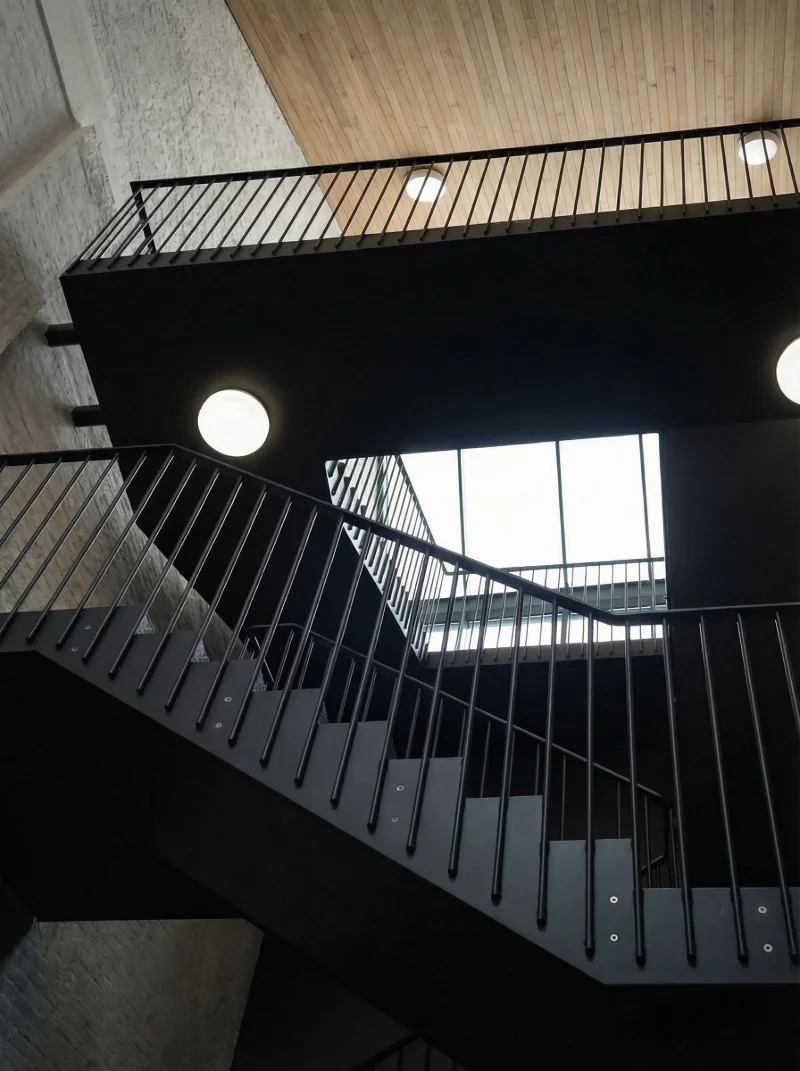

Black steel stair seen from below, with rod railings, round lamps and a roof light.

Steel stair

I drew the stair and landings in a tall void. The photograph shows the built result.

03—How it works

  1. 01

    Send a drawing or sketch

    A hand sketch, an old plan, a PDF or a STEP file. Whatever you have is enough to start.

  2. 02

    Price and schedule

    You get a price and a date when the drawings will be ready.

  3. 03

    Drawings in your format

    I deliver in your templates and drawing standard, as Inventor files, DWG, DXF, STEP or PDF.

04—About me

Black-and-white portrait of Dennis Vercauteren, with CAD dimensions over the face.

I am Dennis Vercauteren. I have been drawing machines, sheet metal and steel structures for 18 years, and have worked in Autodesk Inventor since 2008.

Since 2012 I have done that independently, through Kubuz in Beveren, Belgium.

See the full site · More background

05—Clients

  • AZO
  • Inoxplus
  • Metalox
  • Eribel
  • Metos
  • PTS
  • Technics & Applications
  • Desplentere
  • Servito
  • Amadys

06—Contact

Send a drawing or sketch, and you will get a price and a schedule.

dennis@kubuz.net +32 479 54 46 59
